ZYP630SG3 - Low luminous decay nitride red phosphor for LEDs
ZYP630SG3 is a new oxynitride red phosphor independently developed by our company. Compared with other similar products in the market, it has the characteristics of high brightness, high thermal stability, low luminous decay, and excellent safety and environmental protection. It is best applied to the packaging of high CRI or low color temperature white light LED packaged products. This product can also be applied to the packaging of pink LED with blue or UV LED-chips.
| Excitation Wavelength | 300-470 nm |

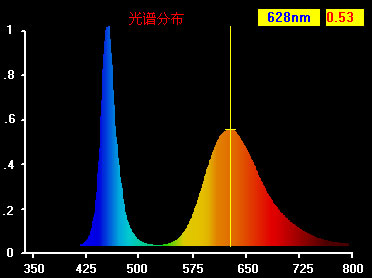

| Primary Emission | 629±1 nm |
| Dominant Emission | 601±1 nm |
| D50 | 6±1 um |
| Relative Brightness | 140-145 |
| CIE | X=0.633±0.003 Y=0.366±0.003 |
| Type: | Nitride |
| Appearance: | Yellow crystal powder. |
| Component: | Nitride chemical compound |
| Stability: | No decomposability in water, strong stability from -50C to 300C in air. |
| Safety: | Meets RoHS standards, contains no radiation, no toxicity. Poses no hazard to humans or the environment. |
| Usage: | Using a mixture of ZYP630SG3 and yellow phosphor, 2500K-4000K warm white LEDs can be realized, with CRI of the packaging products reaching over 80. Pink LEDs can be packaged with blue or UV chips. |
| Directions: | Weigh the phosphor and epoxy or silicone in the correct concentration and mix them evenly. Pump in the vacuum chamber to eliminate air bubbles before package in LEDs for testing. Adjust the concentration as needed and repeat the above steps until the desired CIE is achieved (it can also be mixed with other phosphors). |
| Packaging: | 50g/bottle. |
| Storage: | Keep products sealed in packaging and store in a clean and dry environment. Avoid long term exposure to air. |
